No. 3: Servos
Connecting a Servo to a micro:bit
Instructions on how to attach a Servo to a BBC micro:bit.
What you will need
Instructions on how to attach a Servo to a BBC micro:bit.
What you will need
- BBC micro:bit
- Micro USB cable
- Battery pack with 2 x AAA batteries
- 1 x Servo
- 3 x Breadboard jumper wires
- 3 x Crocodile clip leads
- Optional: Battery pack with 3 x AA batteries
Servo
Wiring instructions
- Disconnect the micro:bit from your computer and disconnect the battery pack.

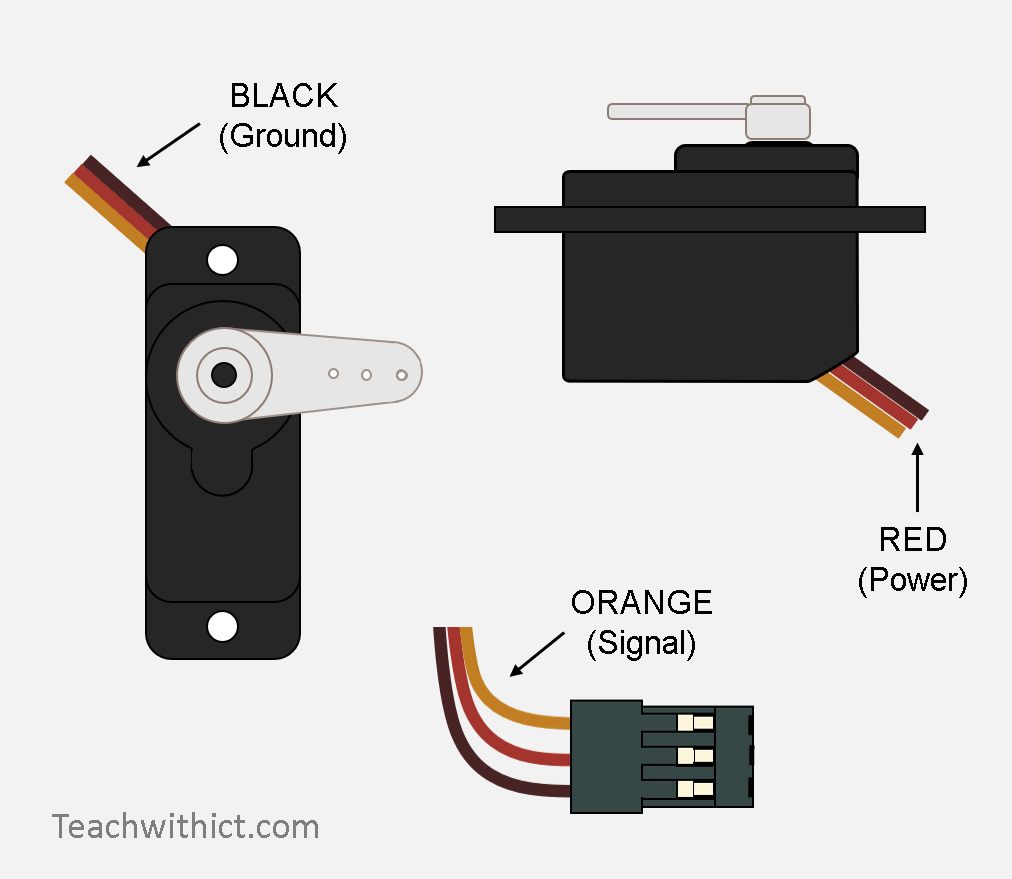

- Insert the jumper wires into the servo plug. See figure 1. (if you don’t have a black, red or orange jumper wires, you can replace these with any colour you wish as long as you remember which jumper wire is connected to which lead on your servo!)
- Connect the crocodile clips to the corresponding jumper wires:
- Brown to GND pin.
- Red to 3V.
- Orange to Pin 0.
Connecting an external power supply to a servo
Whilst these micro-servos can work with the micro:bit, the specified operating voltage for most servo motors is around +5V and that the micro:bit can only supply a small amount of power to connected circuits (3V and 90mA V1 and 190mA V2max). Trying to draw more power than the micro:bit can safely supply, could lead to damaging the device.
For micro:bit V1, the most reliable way to use this type of servo is to power the micro:bit via a battery pack and to use fresh batteries, as the battery voltage drops the servo will become less reliable.
Connecting an external power supply to a servo
The optimal method for connecting a servo is to use a separate battery pack to power the servo and use the micro:bit to control it. This way you are only connecting Pin0 and GND from the micro:bit to the servo (we still need to use GND to share a common ground with other parts of the circuit).
Whilst these micro-servos can work with the micro:bit, the specified operating voltage for most servo motors is around +5V and that the micro:bit can only supply a small amount of power to connected circuits (3V and 90mA V1 and 190mA V2max). Trying to draw more power than the micro:bit can safely supply, could lead to damaging the device.
For micro:bit V1, the most reliable way to use this type of servo is to power the micro:bit via a battery pack and to use fresh batteries, as the battery voltage drops the servo will become less reliable.
Connecting an external power supply to a servo
The optimal method for connecting a servo is to use a separate battery pack to power the servo and use the micro:bit to control it. This way you are only connecting Pin0 and GND from the micro:bit to the servo (we still need to use GND to share a common ground with other parts of the circuit).
WARNING! The external battery pack supplies a higher voltage than the micro:bit. Do not connect the positive (+/red) wire from an external battery pack to the micro:bit as you will damage it.
For more guidance on connecting servos to the micro:bit, check out the official help guide: Using a servo with the micro:bit : Help & Support (microbit.org)
For more guidance on connecting servos to the micro:bit, check out the official help guide: Using a servo with the micro:bit : Help & Support (microbit.org)
Programming your Servo

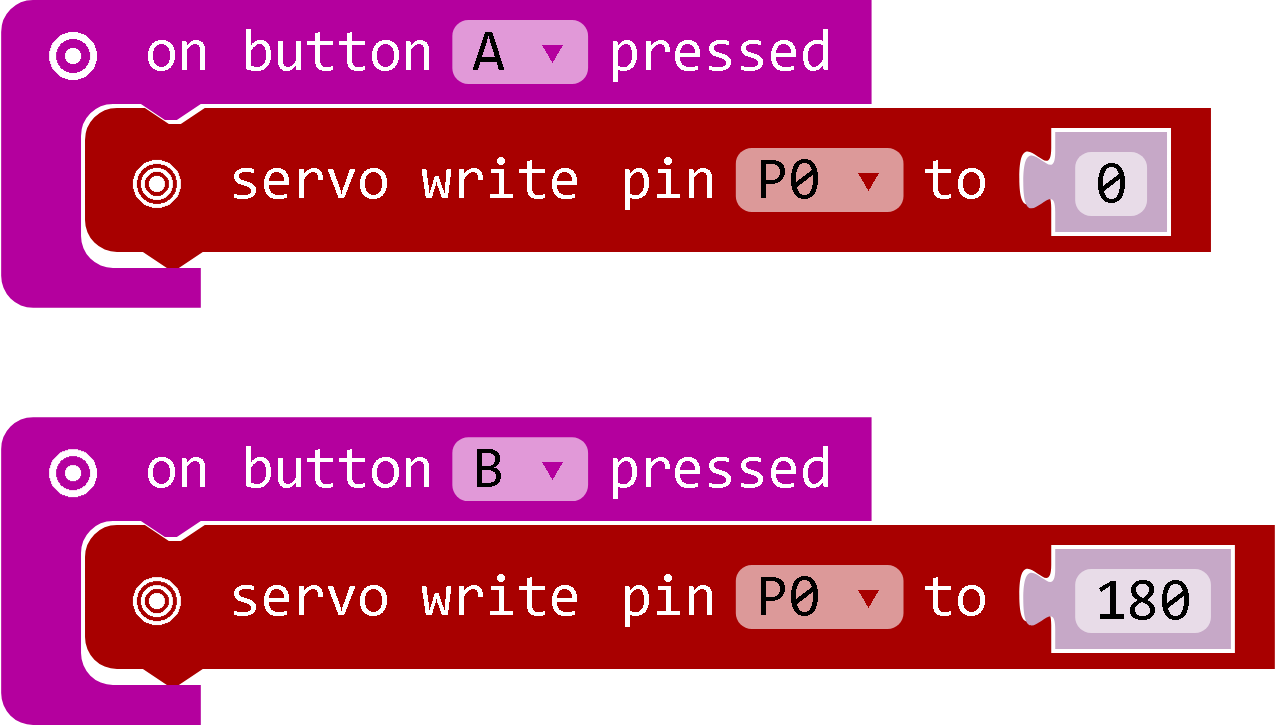

Copy the below:
Programming your Servo
Copy the below:
|

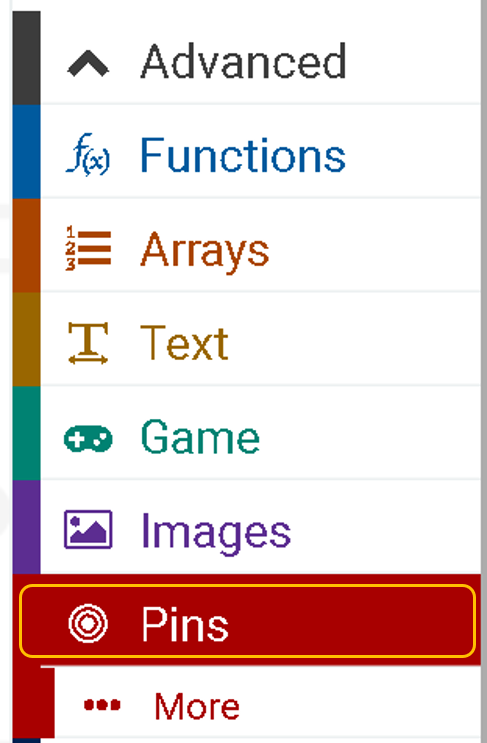

To access the 'Pins' blocks, click on 'Advanced'.
|
Testing your code
Testing your code
- Download your program to your micro:bit.
- Reconnect your battery and run your program.
